About Differential Pressure Gauge

This is a one of the most popular accessories in the market,not only its design look by YUKA,but also its reliable qualtiy.

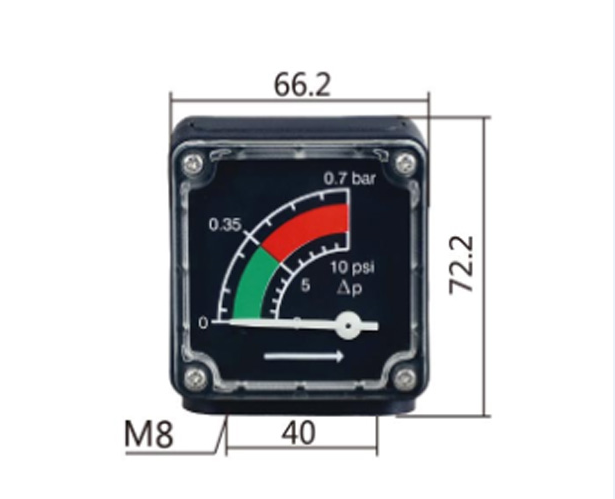

The differential pressure gauge is usually installed on the air filter. There are green and red display areas on the structure. If the pointer is in the green area, the filter element does not need to be replaced. When the pressure difference is larger than 0.35bar, or the filter element is blocked, the pointer will point to the red area, reminding us that need to replace the filter element. But because the differential pressure gauge is not an indicator of compressed air quality, and not like an accurate meter can provide correctionon or accuracy, it can only simply measure the pressure difference and show premature blockage of the filter element.
